| 1. Module Parameters |
| Led Type |
SMD |
| LED |
SMD3535 nationstar |
| Dimension |
480x160x24 mm |
| Resolution |
48*16 Dots |
| Pixel Quantity |
300dots |
| Driving IC |
MB15124 |
| Driving Method |
1/2 |
| Pixel Pitch |
10mm |
| Pixel Configuration |
1R1G1B |

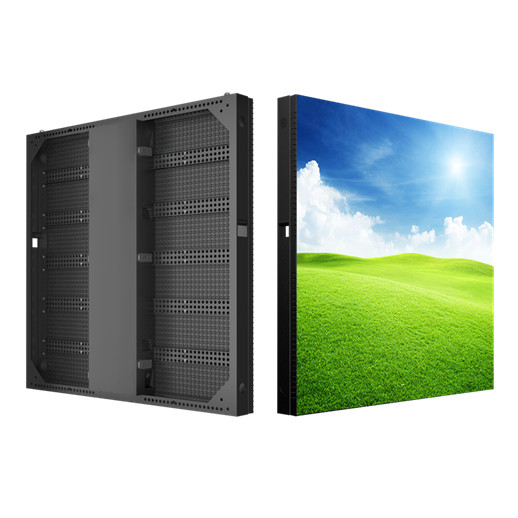

| Cabinet Parameters |
| Dimension |
960x960x125mm |
| Resolution |
96dots x 96dots |
| Module Quantity |
2*6=12pcs |
| Power Supply |
5V/80A(Meanwell) |
| Cabinet Type |
Normal fixed outdoor ventilation |
| Material |
Iron |
| Weight |
34.5 kg |
| Protection Grade |
Front: IP65/Back: IP65 fit for naked installation without decoration |
| Cabinet Quantity |
6x4 pcs |
| Maintenance Type |
Back |
| Screen Parameters |
| Pixel Density |
10000dots/sqm |
| Screen Resolution |
576(L) x 384(H) =221184 |
| Contrast |
2,000:1 |
| Optimal View Distance |
8-70m |
| Input Voltage |
AC220V/50Hz or AC110V/60Hz |
| Max. Power Comsumption |
600w/sqm |
| Average Power Consumption |
200w/sqm |
| Viewing Angle |
Horizontal 120° Vertical 120° |
| Brightness (nits/sqm) |
6500 |
| Refresh Rate |
1920Hz |
| Screen size |
5.76mX3.84m=22.12sqm |
| Frame Frequency |
50-60Hz |
| Luminance Adjusted |
Red 256, Green 256, Blue 256 |
| Grey Grade |
16bit |
| Operating Temperature |
'-30℃～+50℃ |
| Working Humidity |
10%～90% |
| Life Span |
100,000hours |
| Voltage Range |
110V-220V 50Hz-60Hz |
| Input Signal |
YPbPr,S-Video ,VGA,HDMI,SDI |
| Control System |
NOVA |
| Operate System |
Windows2000/XP/ WIN7/WIN8 |
| Vision Parameters |
| White Balance |
≥5500 cd/m2, |
| Grey Grade |
65536 Levels |
| Refresh Rate |
≥2000Hz |
| Available |
Color Palette |
| Color temp |
6500 K |
| Optimal Viewing Distance |
8m-200m |
| Frame Rate |
≥ 60 Frames/sec |
| Defects Rate |
≤ 0,00001 |
| RGB |
14 Bit Control |
| 2. Control System |
| a. Komputer Industrial
(ECSUU) |
CPU : INTEL 1.8G CPU |
| Internal memory : 1 x DDR3 1066/1333MHz DIMM,standard configuration, 2G,max support 4GB |
| Display : Dual display,VGA and DVI,support HDMI |
| Resolution : MAX support 1024*768 |
| Sending card : Can be built-in |
| Network card : Gigabit ethernet ports,in addition to support 3G,4G, WIFI |
| Memory standard : Standard 320G note book disk or SSD |
| USB : 4pcs USB 2.0 ports |
| COM port : 1pc RS232 COM port optional |
| Power port : '+12V voltage input |
| BIOS : AMI authorization 8Mbit BIOS procedure,support, RPL/PXEdiskless booting |
| SIZE : 330mm(H)×205mm(W)×56mm（D） |
| Work environment |
| Work temperature : -10~70°C |
| Work humidity : 10%~80% relative humidity,without solidification |
| approve : European union CE |
| b. Sending Card
MSD 300 |
Product Type ：Sending card |
| Input Resolution ：1280×1024, 1024×1200, 1600×848, 1920×712 or 2048×668 (width and height can be specially defined by customers) |
| Capacity ：1.3 million pixels |
| Supply Voltage ：5.0V |
| Control Method ：USB Interface |
| Video Interface ：DVI |
| Audio Interface ：3.5 mm |
| Video Format ：RGB |
| Output Interface ：2 Ethernet ports |
| Bit Depth Of Video Resource ：8 bit |
| Light Sensor Interface ：1 |
| Certification ：RoHS、CE |
|
| c. Receiving Card
MRV330 |
Integrated 12 standard HUB75 connectors and without the HUB structure |
| Single card outputs 24-group of RGB data |
| Single card supports resolution of 256x226 |
| Configuration file readback |
| Temperature monitoring |
| Ethernet cable communication status detection |
| Power supply voltage detection |
| High gray scale and high refresh rate |
| Pixel-by-pixel brightness and chromaticity calibration |
| Pre-store picture setting |
| Comply with EU RoHs standard |
| Comply with EU CE-EMC standard |
| 3. Online Power Monitor (OPM) |
| Communication over Wi-Fi/3G |
| Can be accessed via Android/IOS/Laptop/PC |
| WPA/PSK encrypted |
| Monitor power consumption, temperature, humidity |
| Maintain temperature in controller for long lifetime use |
| Compatible rack mount for video processor |
| Measures kWh, Kvarh, KW, Kvar, KVA, PF, Hz, dmd, V, A, etc |
| Bi-directional measurement IMP & EXP |
| Two pulse Outputs |
| RS485 Modbus |
| Din rail mounting 17.5mm |
| 45A direct connection |
| Better than class 1 accuracy |
| 4. Pasang baru listrik dan instalasi |
| 5. Konstruksi |
