| Products series | SPU5.95 |
| Pixel Pitch(mm) | 5.95 |
| Pixel density(dots/㎡) | 28224 |
| LED encapsulation | SMD2727 |
| Driving method | 1/7 |
| Resulution of module | 42X84 |
| Module size(mm) | 250X500 |

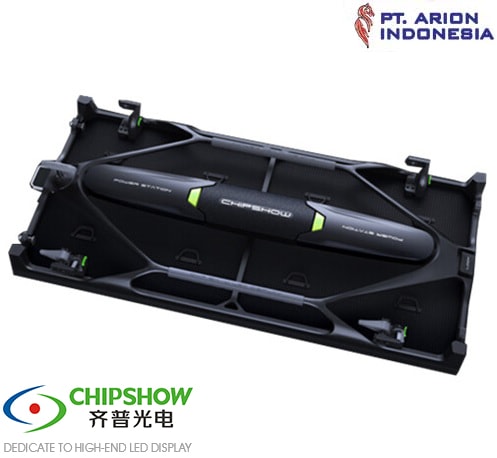

| Cabinet size(mm) | 500X1000 |
| Material of cabinet | Die-casting magnalium |
| Weight of cabinet(kg) | 14±0.5 |
| Working voltage(v) | 4.2 |
| Max.consumption(w/㎡) | 640 |
| Ave.consumption(w/㎡ ) | 250 |
| Brightness(nit) | 5000 |
| Color temperature | 6000－8000K |
| View angle | 120° |
| Refresh rate(hz) | 1920 |
| Working temaperatuer | -20℃ ~50℃ |
| Protection grade | IP54 |
| Grey / scale | 13bit |
42.700.000/m²
