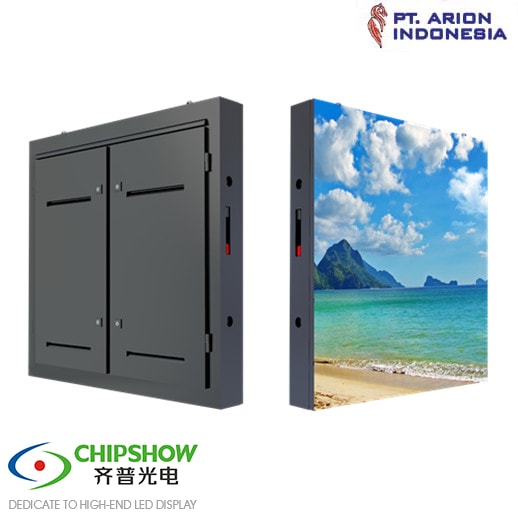

Chipshow AK6.6S Led Display

Products series	AK6.6s
Pixel Pitch(mm)	6.67mm
Pixel density(dots/㎡)	22500
LED encapsulation	SMD3535
Driving method	1/6
Resulution of module	48X48
Module size(mm)	320X320
Cabinet size(mm)	960X960
Material of cabinet	Iron
Weight of cabinet(kg)	48
Working voltage(v)	5
Max.consumption(w/㎡)	605
Ave.consumption(w/㎡ )	242
Brightness(nit)	≥5500
Color temperature	6500K
View angle	120°/120°
Refresh rate(hz)	1920
Working temaperatuer	-20℃ ~+50℃
Control system、System supports	IP65 / IP65
Grey / scale	14bit
