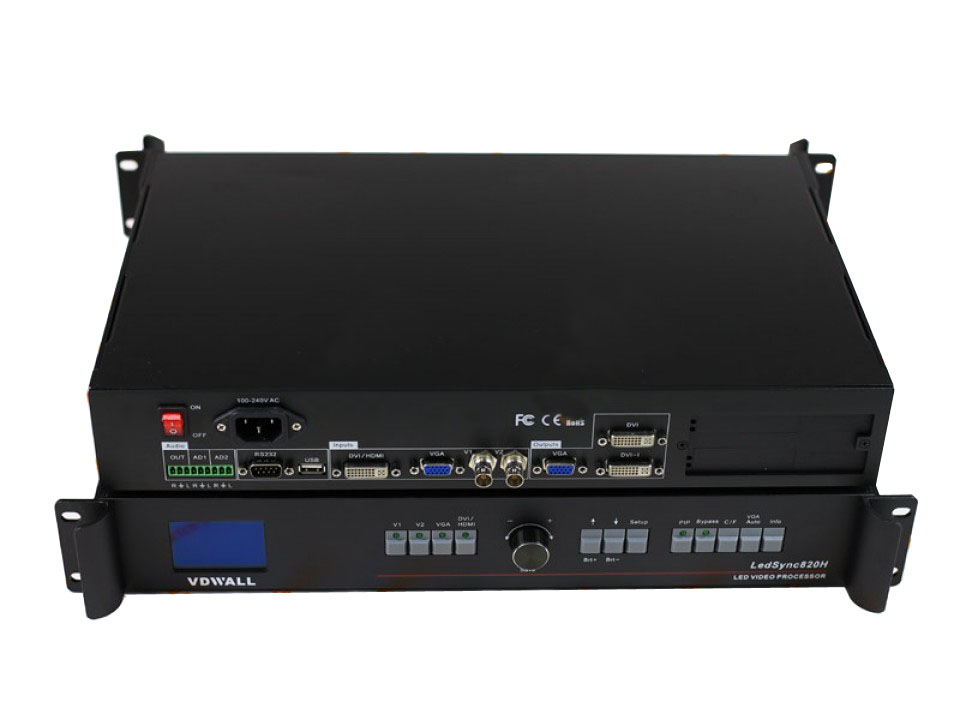

LEDSync820C is a discountinued old version card,
and its new compatible version is LEDSync820H

Features

  1. 10+ Bit Faroudja® DCDI Cinema Processing
  2. New Faroudja® Real Color®
  3. Faroudja® TureLife™ Video Enhancer
  4. Advanced 4×4 Pixels Interpolation Scaling Algorithm
  5. HDMI 1.3a with HDCP, HD 1080p input
  6. 10-bit Processing
  7. Seamless Switching, Fade-in / Fade-out and blend switching
  8. PIP/POP display
  9. 1920×1080 output for single machine
  10. Easy setup and adjustment through knob and keys on the panel. Full design RS232 command for operating and setting.
  11. Press keys on frontal panel to directly select 10-channel input signal source,
    including:
    2*CVBS
    1*DVI/HDMI
    1*VGA
  1. 2 channels can be configured to connect external stereo audio, plus DVI/HDMI audio, there are 3-channel audio for synchronous switch
  2. 2 LED Transmission Cards Built-in ability (sending cards are optional)
  3. 24/7 ApplicationSpecifications
Inputs
Nums/Type 2*Composite
1*VGA ¼(RGBHV ¼‰
1*DVI ¼(HDMI ¼‰ ¼(1.3a with HDCP ¼‰
Video system PAL/NTSC
Composite Video 1V ¼(p_p ¼‰/ 75Ω
Scope/Impedance
VGA Format PC ¼(VESA ¼‰ ≤2048×1152 @60Hz
VGA Scope/Impedance R、G、B = 0.7 V ¼(p_p ¼‰/ 75Ω
DVI /HDMI 1.3 Format SD/HD ¼(CEA-861 ¼‰ ≤1920x1080P @60Hz
( HDCP ) PC ¼(VESA ¼‰ ≤2048×1152 @60Hz
AUDIO Scope/Impedance 2.0Vp-p/10KΩ
Input Connectors VGA ¼š15pin D_Sub(Female)
DVI ¼š24+1 DVI_D
Composite ¼šBNC
Outputs
Nums/Type 1*VGA ¼(RGBHV ¼‰
2*DVI
VGA/DVI Format 1024*768@60Hz/75Hz
1280*1024@60Hz/75Hz
1600*1200@60Hz
1920*1080p@50Hz/60Hz
1366*768@60Hz
1440*900@60Hz
VGA Scope/Impedance R、G、B = 0.7 V ¼(p_p ¼‰/ 75Ω
Output Connectors VGA OUT ¼š15pin D_Sub(Female)
DVI OUT1 ¼š24+5 DVI_I
DVI OUT2 ¼š24+1 DVI_D
Others
Control Panel Button,RS232/USB
Power 100-240VAC 35W 50/60Hz
Operating Temp 5-40 ℃
Humidity 15-85%
Dimensions ¼(Package ¼‰ 145 mm (height) *370mm (width) *535mm (length)
Weight ¼(G.W. ¼‰ 5.0 Kg
Weight ¼(N.W. ¼‰ 3.2Kg

Rp 21.060.000
